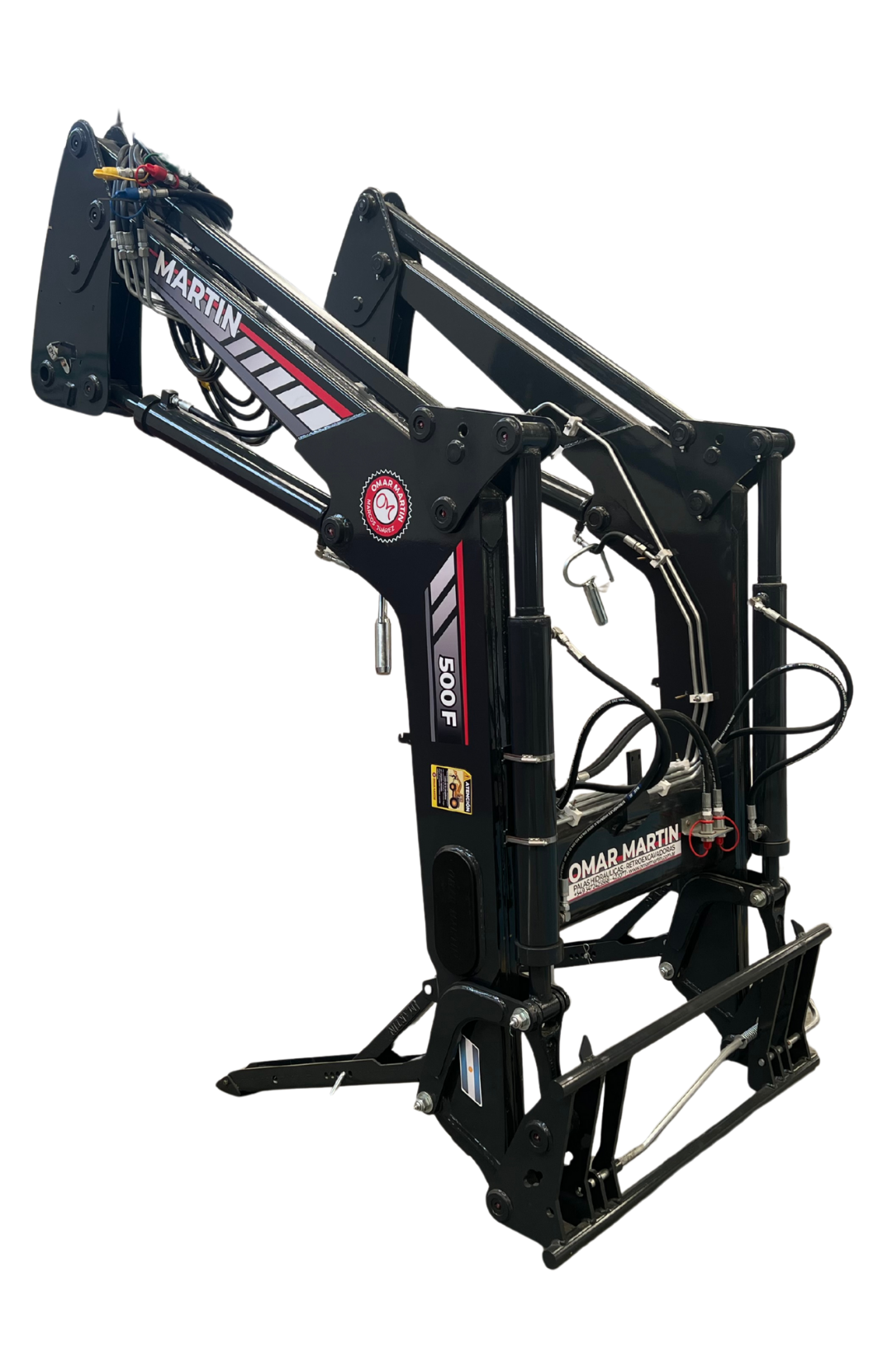

Front Loader for 80 to 130 HP Tractors  OM-500-F EURO

All designs are based on tractors equipped with an open platform or original factory cab.

Features

• Working Height 3,80 m.

• Loading capacity 1300 kg

• Reinforced 1/2 m³ Bucket // Width: 1.87 m // 5 Cast Teeth

• EURO ISO 23206 Quick Bucket Release System.

• Quick Attach System for Functional Attachments

• Mounting systems specifically designed for all tractor models from every major brand (medium-sized tractors).

• Mechanical Self-Leveling Compensation System / Parallelogram Linkage

Equipped with four hydraulic cylinders featuring steel rods and Polly Pack sealing system. The main 3” cylinders operate the lifting arms, while the secondary 3” cylinders control the loader bucket or attachments.

Featuring a unique quick attach and detach system, allowing the loader to be removed from the tractor in just a few minutes, freeing the tractor for other regular tasks or applications.

Featuring an innovative self-leveling compensation system or parallelogram linkage, which keeps the bucket or attachment in a horizontal position throughout the entire lifting cycle, preventing material spillage or load displacement.

The bucket can be detached in no more than 5 seconds by operating a single lever, without the need for pins or locking clips to secure the bucket or optional attachments. This innovative system allows users to adapt the loader for multiple applications, saving time while improving efficiency and the quality of the work performed.

Continuing with our loader manufacturing philosophy, this model is built using premium-quality components and the latest technology, including CNC plasma cutting, numerically controlled press brakes, automated welding systems, and pins and bushings manufactured on computerized lathes, among other advanced processes.

The “C”-shaped folded arms and towers, automated welding processes, and assembly on dedicated mounting fixtures provide exceptional precision, outstanding resistance to heavy loads and torsional forces, making the loader virtually indestructible.

By using a wide range of optional attachments, the front loader can be transformed into a practical forklift, bale loader, log loader, forage extractor, bulk bag lifter, and more. This versatility allows it to be used across multiple sectors, including agriculture and livestock operations, feedlots, building material yards, road maintenance cooperatives, municipalities, sawmills, and other applications..

We offer adaptation kits for all tractor brands and models currently available on the market, including both two-wheel and four-wheel drive versions.
