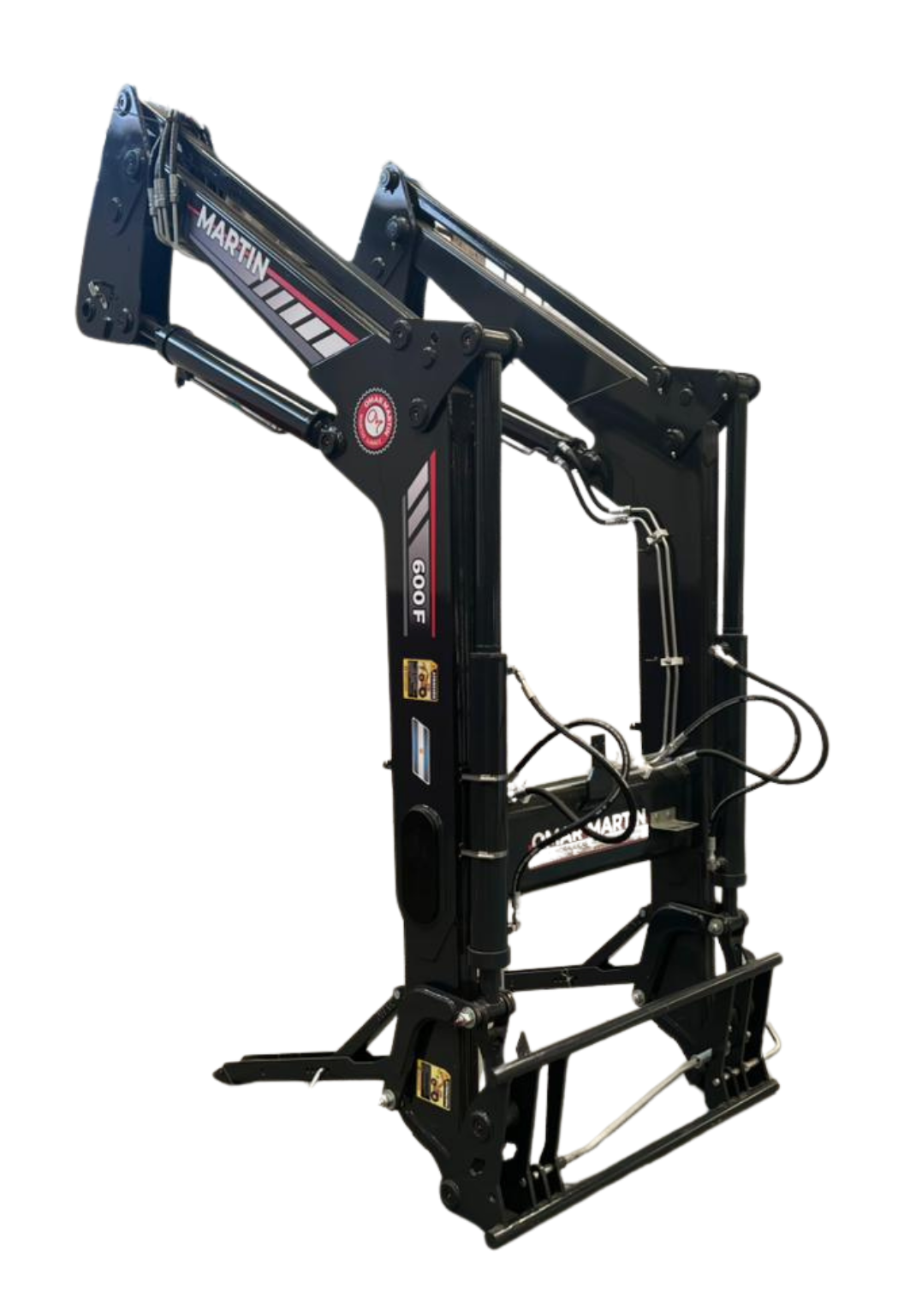

Front Loader for 90 to 200 HP Tractors - OM-600-F EURO

All designs are based on tractors equipped with an open platform or original factory cab.​

Features

•Towers with 60 mm support bushings.

•60 mm support bushings and 40 mm through pins.

•Boom bushings for 50 mm pins with heat treatment.

• woking height 4,10 m.

• Loading capacity 1600 kg

• Reinforced 3/4 m³ Bucket // Width: 1.98 m // 5 Cast Teeth

• EURO ISO 23206 Quick Bucket Release System

• Quick Attach System for Functional Attachments.

• Mounting systems specifically designed for all tractor models from every major brand (medium-sized tractors).

• Mechanical Self-Leveling Compensation System / Parallelogram Linkage

Featuring an innovative self-leveling compensation system or parallelogram linkage, which keeps the bucket or attachment in a horizontal position throughout the entire lifting cycle, preventing material spillage or load displacement.

The bucket can be detached in no more than 5 seconds by operating a single lever, without the need for pins or locking clips to secure the bucket or optional attachments. This innovative system allows users to adapt the loader for multiple tasks, saving time while improving efficiency and work quality.

Continuing our commitment to excellence, this loader is manufactured using premium-quality components and the latest technology, including CNC plasma cutting, numerically controlled press brakes, automated welding systems, and pins and bushings produced on computerized lathes, among other advanced processes.

The “C”-shaped folded arms and towers, automated welding processes, and assembly on dedicated mounting fixtures provide exceptional precision, outstanding resistance to heavy loads and torsional stress, making the loader virtually indestructible.

With a wide range of optional attachments, the front loader can be transformed into a practical forklift, bale loader, log loader, forage extractor, bulk bag lifter, and more. This versatility allows it to be used in agricultural and livestock operations, feedlots, building material yards, and other demanding applications.l.
