Front Loader for 90 to 200 HP Tractors 9

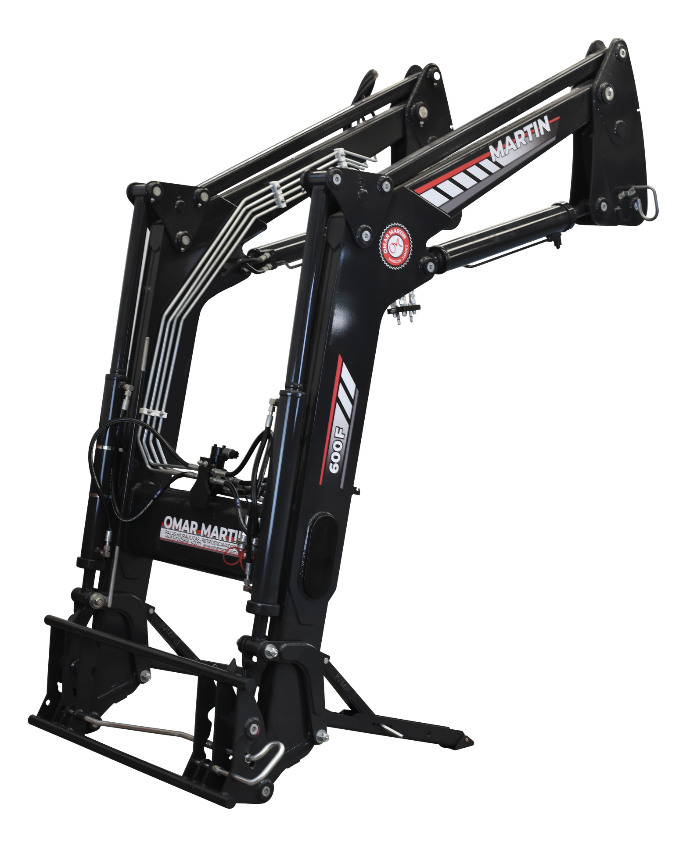

OM-600-F EURO PLATINUM

All designs are based on tractors equipped with an open platform or original factory cab.

The Platinum line features the highest available technology on the market, along with exclusive accessories that provide enhanced operator comfort for the most demanding customers.

Includes the Multifaster hydraulic hose coupling system, shock-resistant selector valve, cushioning system, additional third hydraulic function, and joystick control, making loader operation easier and more intuitive by allowing two movements to be controlled with a single lever.

Features

•Towers with 60 mm support bushings.

•40 mm through pins.

•Boom bushings for 50 mm pins with heat treatment.

• Working height 4,10 m.

• Loading capacity 1600 kg

• Reinforced 1/2 m³ Bucket // Width: 1.87 m // 5 Cast Teeth

• EURO ISO 23206 Quick Bucket Release System

• Quick Attach System for Functional Attachments

• Mounting systems specifically designed for all tractor models from every major brand (medium-sized tractors).

• Mechanical Self-Leveling Compensation System / Parallelogram Linkage

Featuring an innovative self-leveling compensation system or parallelogram linkage, which keeps the bucket or attachment level throughout the entire lifting cycle, preventing material spillage or load displacement.

The bucket can be detached in no more than 5 seconds by operating a single lever, without the need for pins or locking clips to secure the bucket or optional attachments. This innovative system allows users to adapt the loader for multiple tasks, saving time while improving efficiency and work quality.

Continuing our commitment to excellence, this loader is manufactured using premium-quality components and the latest technology, including CNC plasma cutting, numerically controlled press brakes, automated welding systems, and pins and bushings produced on computerized lathes, among other advanced processes.
